Electric Actuated Ball Valves: Understanding The Technology

In industrial automation, precision and reliability are essential. Automated ball valves are widely used in modern fluid control systems, particularly those with electric actuators. Managing fluid systems in chemical processing, power generation, and water treatment requires precise tools and technologies, significantly affecting a system’s performance and economic efficiency.

This article aims to explain how an electric actuated ball valve works and how this technology is used in industrial systems to improve their efficiency and boost control automation. Engineers, system integrators, and other B2B buyers need to understand the working principles of these valves to make the right design choices.

Types Of Automated Ball Valves

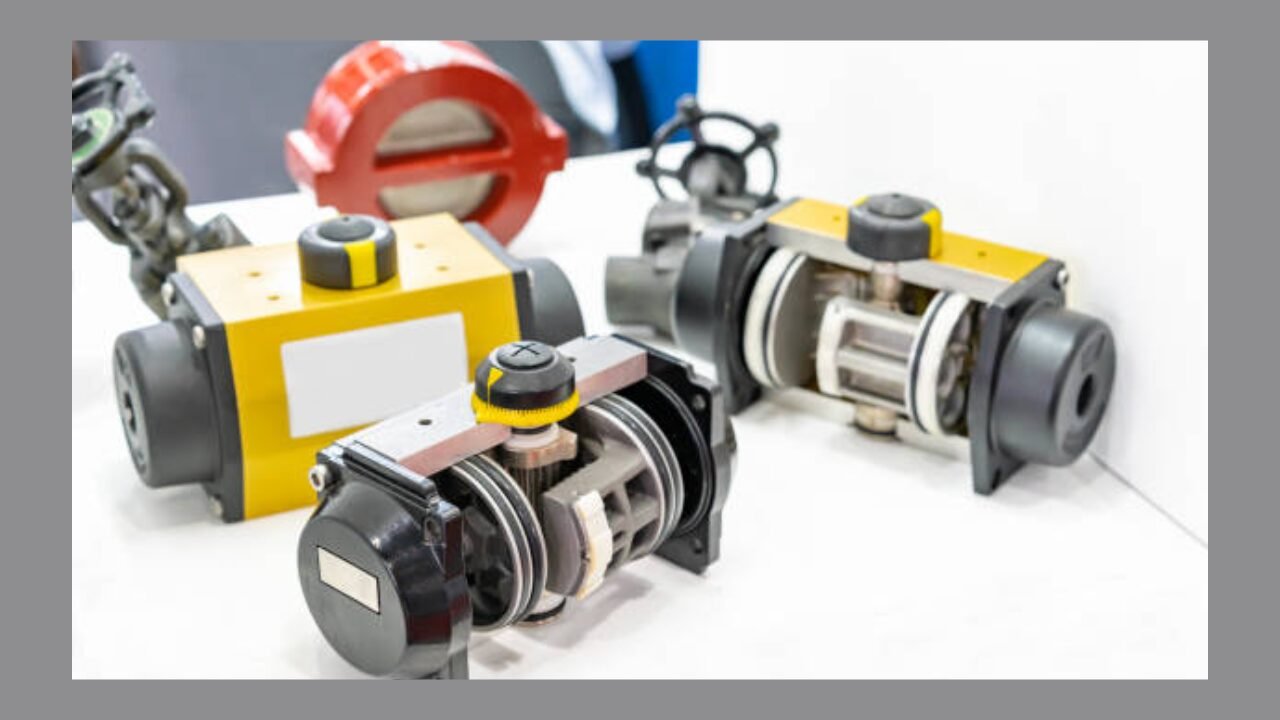

In their simplest definition, automated ball valves are classified as quarter-turn valves with a rotatable sphere with a hollow center for liquid and gas flow control. Combined with an actuator—a device that regulates valve movement—the valve can function automatically. Depending on the actuator employed, the valve can be propelled by air (pneumatic), fluid (hydraulic), or electricity.

Electric actuated ball valves have an electric motor that rotates the ball valve, enabling precise control of the opening and closing functions of the valve. As remote and programmable control functionalities gain traction in automation control systems like SCADA, PLCs, etc., automation controllers become more integrated with electric actuators for valves. The adoption of electric actuated valves is growing with the surge in industrial system automation.

Upgrading process automation with an electric actuated ball valve requires its integration into a digital control network, showcasing its multifunctional nature in modern applications.

Parts of an Electric Actuated Ball Valve

Understanding these valves’ components is fundamental to understanding their operation.

Valve Body Design

The valve casing encloses internal components, the inlet, and the fluid or gas flow outlet. In some instances, the material must be highly corrosion-resistant, like stainless steel, brass, or even PVC, which makes it suitable for various applications.

Ball

The rotating component of a valve, which has a hole (bore) through its center, is called the Ball. As the actuator rotates the ball to align the bore with the pipeline, the fluid flows freely. The rotatable ball can also stop the flow by a 90-degree rotation that closes the valve.

Seals and Seats

These parts guarantee that a proper shut-off is attained and leakage is avoided. They are made of materials like PTFE, which can withstand high pressure and maintain the seal on the ball.

Control Interface

These parts ensure that a tight shut-off and leakage prevention are achieved. They are made of PTFE, which can withstand high pressure and keep the ball under a tight seal.

Electric Actuator

The part that single-handedly drives the entire automaton is the electric actuator. The particular section gathers electrical signals from the controller and transforms the signals into rotary motion to twist the valve accordingly. The electric actuator contains a motor, gearbox, limit switches, and a control board.

How an Electric Actuated Ball Valve Operates

It employs a set of sequential steps that integrates the mechanical, electrical, and electronic systems:

1. Signal Reception: The actuator receives a signal from the control unit to open, close, or modulate the valve.
2. Motor Activation: The electric motor within the actuator is activated, so rotation begins.
3. Gear Transmission: The gears within an actuator transform the low torque and high speed rotating motors into a more suitable model of low speed, high torque motion for the valve actuation.
4. Ball Rotation: The gear output turns the ball and valve, which is located at the center of the valve body and the stem, into the desired position.
5. Feedback on Position: Limit switches or valves within the actuator, verify the valve position, and relay confirmation to the control unit.
6. Control Loop for the System: The controller modifies valve position depending on system feedback and process variables through continuous modulation (smooth control) or open-closed (snap action) control.

This functional operation mode increases the importance of automated ball valves in systems requiring repetitive and consistent performance without human effort.

Benefits Of Using Electric Actuated Ball Valves

For organizations operating in electric actuated industrial projects, the advantages of purchasing electric actuated valves become striking:

• Control with Greater Precision: Electric actuators enable optimal valve positioning in adjustable systems, unlike in modulating systems.
• Very Few Repairs: Electric systems have fewer frequent maintenance needs than pneumatic and hydraulic systems, which minimizes system downtime and recovery costs.
• More Efficient Use of Energy: They only use energy when operating, unlike pneumatic systems, which need air to be regularly compressed.
• Reduced Auditory Noise: For environments sensitive to noise, electric motors are quieter than pneumatic actuators.
• Smart Digital Monitoring: These valves can be linked up to advanced systems and devices to allow valve monitoring, real-time diagnostics, and maintenance that can be predicted.

For companies aiming to emphasize long-term value, electric actuated ball valves provide a sustainable investment while offering reliability and ease of scaling.

Industry Applications

Automated ball valves are essential tools in several B2B markets where liquid and gas control is vital:

• Valves regulate flow in filtration, chemical dosing, and sludge handling within water and wastewater treatment.
• Oil and Gas: Used to manage the flow of crude oil, natural gas, and refined products.
• Commercial HVAC: Control cooled and heated water loops in municipal buildings.
• Food and Pharmaceuticals: Hygiene and precise flow control are maintained in clean areas.
• Chemical Processing: Control aggressive fluids and gases with varying pressures and temperatures.

Because of electric actuated valves’ adaptability and strong integration possibilities, they can work in large industrial systems and more specialized applications.

Things to Look At When Choosing A Valve

When sourcing an electric actuated ball valve for the project, B2B users should keep these points in mind:

• Actuator Type: Decide if you need on/off or modulating actuators per the application.
• Voltage Requirements: Select the appropriate voltage for the application. Options for electric actuators include 24VDC, 110VAC, and 220VAC.
• Surrounding Conditions: Assess temperature, humidity, and explosion-proof conditions.
• Material Compatibility: Validate that the valve material does not corrode or degrade due to the media used.
• Certifications: Check for compliance with local and international standards for industry certifications like ISO or CE.

Proper selection improves system dependability, optimizes maintenance tasks, and saves energy.

Conclusion

B2B marketers need to understand the technology behind automated ball valves as industrial systems evolve towards greater complexity and automation. The electric actuated ball valve is a digitally controlled, energy-efficient, low-maintenance fluid control solution that integrates seamlessly into a facility’s infrastructure.

Businesses can eliminate manual work and automate processes using the technologies mentioned in this guide while complying with regulations and sustainability standards. From the perspective of modern industrial automation, such valves are more than just an element; they are essential for future-ready systems.
