Select Right Pleated Filter Cartridge for Filtration System

Industrial filtration is a crucial process in various sectors, including water treatment, food and beverage production, pharmaceuticals, power generation, electronics, and the chemical industry. The quality of filtration directly determines product safety, process efficiency, and equipment longevity. Among the many filtration options available, pleated filter cartridges have become one of the most widely used due to their high surface area, reliable performance, and adaptability to different industrial environments.

However, not all pleated filter cartridges are created equal. Different industries, applications, and operating conditions require tailored solutions. Choosing the wrong cartridge can lead to inefficient filtration, increased operational costs, product contamination, or even system failure. This is why having a step-by-step selection guide is essential for engineers, procurement managers, and industrial facility operators.

This article provides a comprehensive, step-by-step guide to selecting the ideal pleated filter cartridge for industrial filtration systems. By the end, you will have a clear understanding of how to evaluate specifications, materials, design options, and application requirements to ensure optimal filtration performance.

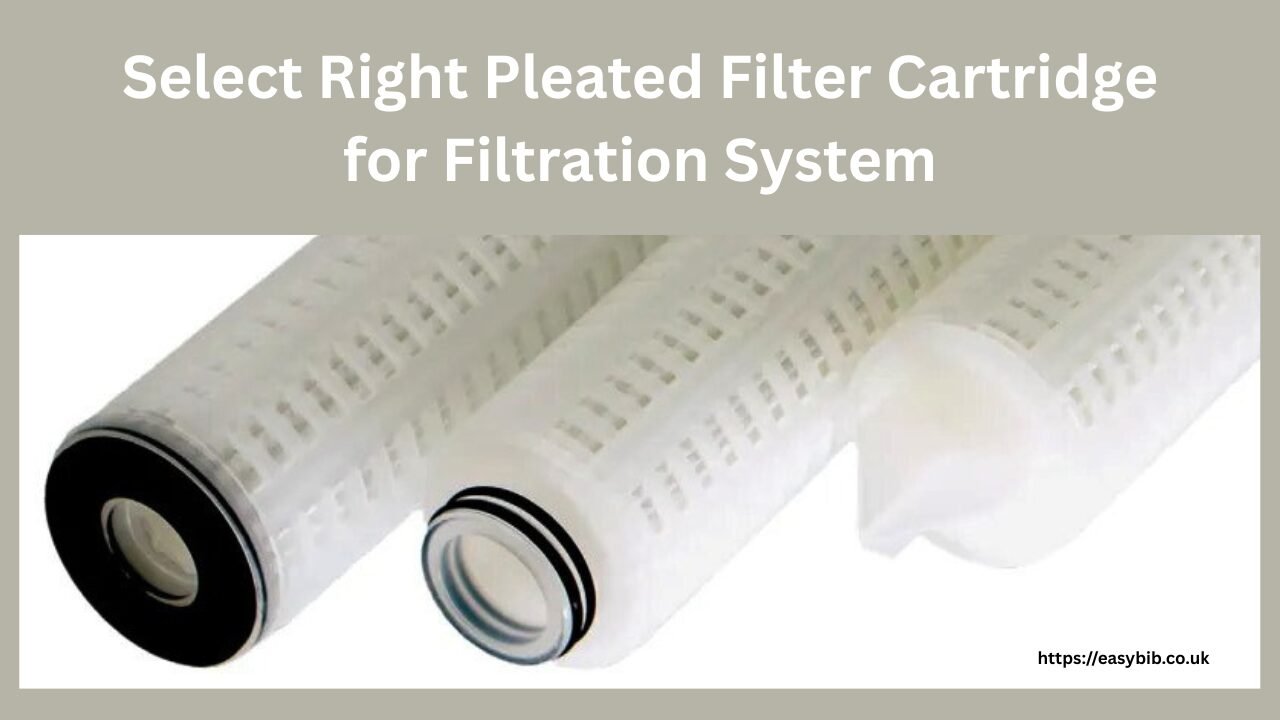

What Is a Pleated Filter Cartridge?

A pleated filter cartridge is a cylindrical filtration element that uses pleated media to increase the surface area available for filtration. The pleating design enables the capture of more contaminants without increasing the overall size of the filter, providing a high dirt-holding capacity and longer service life compared to depth filters.

Key features of pleated filter cartridges include:

• High surface area due to pleated structure
• Consistent micron ratings for precise particle removal
• Wide range of materials to handle different chemicals and temperatures
• Multiple end-cap styles for compatibility with various housings
• Washable or disposable options, depending on industry needs

Pleated cartridges are widely used for removing particles, sediments, microorganisms, and impurities in industrial liquids and gases.

Why Selecting the Right Pleated Filter Cartridge Matters

The importance of choosing the right pleated filter cartridge cannot be overstated. Industrial processes require stability, compliance with regulations, and cost-efficiency. Selecting the wrong filter can have consequences such as:

1. Reduced Filtration Efficiency – Using an incorrect micron rating may allow contaminants to pass through, leading to product defects.
2. Increased Operational Costs – A cartridge with a low dirt-holding capacity will clog more quickly, necessitating frequent replacements.
3. System Downtime – Incorrect end-cap compatibility or material incompatibility may cause leaks or filter failure.
4. Regulatory Non-Compliance – In industries such as pharmaceuticals or food processing, non-compliant filters can lead to legal and safety issues.
5. Product Contamination – Poor material selection may lead to chemical leaching or microbial growth, compromising product quality.

Thus, a systematic approach to filter selection is critical for long-term operational success.

Step-by-Step Guide to Choosing the Best Pleated Filter Cartridge

Step 1: Define the Filtration Objective

The first step is to clarify what you want to achieve with your filtration system. This depends on the industry and the type of contaminants you aim to remove.

• Water treatment plants: removal of sediments, bacteria, and organic matter
• Food & beverage: ensuring product purity, removal of yeast, bacteria, and fine particles
• Pharmaceuticals: sterile filtration, removal of endotoxins or microorganisms
• Electronics & semiconductors: ultrapure water filtration, removal of submicron particles
• Power plants: turbine lubrication oil filtration, condensate polishing
• Chemical processing: compatibility with aggressive solvents and acids

By defining your filtration goal, you can determine the appropriate micron rating, media material, and cartridge construction.

Step 2: Identify the Contaminant Characteristics

Knowing the nature of contaminants in your system is essential. You should ask:

• Are contaminants solid particles, colloids, or microorganisms?
• What is their average and maximum size?
• Are they deformable or rigid?
• Are they organic, inorganic, or chemical-based?

For example:

• If filtering sand or rust particles from cooling water, a coarse pleated cartridge (10–50 µm) may be enough.
• If filtering bacteria in pharmaceutical processes, a finer pleated cartridge (0.2–0.45 µm) is required.
• When filtering viscous chemicals, a cartridge with strong, chemically resistant media, such as PTFE or PVDF, is necessary.

Step 3: Determine the Required Micron Rating

The micron rating indicates the size of particles a filter can capture. Micron ratings for pleated cartridges typically range from 0.1 µm to 100 µm.

• 0.1–0.2 µm: Sterile applications (pharmaceuticals, biotechnology)
• 0.45 µm: Beverage industry (wine, beer, mineral water)
• 1–5 µm: Food, general industrial water, electronics
• 10–50 µm: Pretreatment in water systems, power plants
• >50 µm: Coarse filtration in chemical or wastewater plants

Choosing a micron rating that is too fine may unnecessarily increase pressure drop and shorten service life. Choosing a mesh that is too coarse may compromise filtration efficiency. Thus, micron rating must balance efficiency and flow requirements.

Step 4: Select the Filter Media Material

Pleated filter cartridges are available in a variety of materials, each with unique strengths:

• Polypropylene (PP) – Most common, excellent chemical resistance, cost-effective
• Polyethersulfone (PES) – Low protein binding, ideal for food & pharmaceutical industries
• Polytetrafluoroethylene (PTFE) – Hydrophobic, excellent for aggressive solvents and gases
• Polyvinylidene Fluoride (PVDF) – High strength, low extractables, used in biopharma and ultrapure water
• Nylon – High mechanical strength, suitable for solvent filtration
• Glass fiber – High dirt-holding capacity, used in power plants and chemicals

When choosing media, consider chemical compatibility, temperature resistance, extractables, and regulatory compliance. For a more detailed breakdown, refer to “How to Select the Best Filter Cartridge Material for Your Filtration System.”

Step 5: Check End-Cap and Gasket Compatibility

Pleated cartridges are available with various end-cap styles, including DOE (double open end), SOE (single open end), 222 O-ring, 226 O-ring, fin, or flat cap. Selecting the wrong type may cause bypass leakage or installation issues.

Gaskets and O-rings are usually made from EPDM, silicone, Viton, or PTFE. Selecting the right gasket ensures a tight seal and chemical resistance.

Step 6: Consider Flow Rate and Pressure Drop

Flow rate and pressure drop are critical parameters in filtration. Even if the filter has the correct micron rating and media, if it cannot handle the required system flow rate, it will cause operational inefficiency.

• Flow Rate: Each pleated filter cartridge has a maximum recommended flow rate, usually measured in liters per minute (LPM) or gallons per minute (GPM). Ensure the filter can handle your system demand without exceeding its limit.
• Pressure Drop: A filter with a too fine micron rating or insufficient surface area will create a higher initial pressure drop, thereby reducing system efficiency. Always aim for a cartridge with low differential pressure at the operating flow rate.

Pro Tip: For high-volume applications, consider high-flow pleated cartridges that allow more liquid throughput with fewer elements. A detailed explanation with practical calculation methods is available in How to Choose the Right Cartridge Filter Flow Rate for Your Filtration System.

Step 7: Evaluate Temperature and Chemical Compatibility

Industrial systems often operate in extreme temperatures and exposure to harsh chemicals. Choosing a filter that cannot withstand these conditions leads to rapid degradation.

• Temperature: Check the maximum operating temperature of the cartridge material. For example, polypropylene can handle temperatures up to 80°C, while PTFE can withstand temperatures up to 200°C.
• Chemical Compatibility: Use a chemical compatibility chart to match filter media with process fluids. For instance:
  • Polypropylene is compatible with acids and bases, but not with strong oxidizers.
  • PTFE handles almost all aggressive chemicals.
  • PES and PVDF are excellent for pharmaceutical-grade water.

Step 8: Regulatory and Industry Standards Compliance

Certain industries require filters that meet specific certifications:

• Pharmaceuticals & Biotechnology: Filters should comply with USP Class VI, FDA regulations, or ISO 13485.
• Food & Beverage: Filters must be FDA-approved for food contact and possibly meet NSF/ANSI standards.
• Water Treatment: NSF/ANSI 42 and 53 standards are often required.
• Semiconductor & Electronics: Filters may need to meet SEMI standards for ultrapure water systems.

Selecting cartridges with the proper certifications ensures compliance and avoids costly regulatory issues.

Step 9: Calculate Life Cycle Costs

Price alone should not be the sole determinant of your filter choice. Instead, evaluate the total cost of ownership (TCO):

• Initial purchase price
• Service life (how long the cartridge lasts before replacement)
• Maintenance costs (frequency of changeouts, downtime)
• Energy consumption (filters with high pressure drop increase pump energy costs)

Sometimes, a more expensive cartridge with a higher dirt-holding capacity can save money in the long run by reducing the need for replacements and system downtime.

Step 10: Verify Housing Compatibility

Finally, make sure the pleated filter cartridge is fully compatible with your existing filter housing. Important checks include:

• Cartridge length (commonly 5″, 10″, 20″, 30″, 40″)
• End-cap style (DOE, 222, 226, etc.)
• Seal material (EPDM, silicone, Viton, PTFE)
• Operating pressure rating

Using cartridges not designed for your housing can cause bypass leaks, poor sealing, or even damage to the equipment.

Applications of Pleated Filter Cartridges in Industrial Systems

Pleated filter cartridges are versatile and widely used across multiple industries:

• Water Treatment Plants: Sediment removal, municipal water filtration, reverse osmosis prefiltration.
• Food & Beverage Industry: Clarification of beer, wine, bottled water, dairy, and juices.
• Pharmaceutical & Biotech: Sterile filtration of injectables, culture media, and process water.
• Electronics & Semiconductor: Ultrapure water production, removal of particles from process chemicals.
• Power Generation: Filtration of boiler feedwater, condensate polishing, and lubrication oils.
• Chemical Processing: Filtration of aggressive solvents, acids, and process fluids.

Each of these applications requires tailored filter specifications based on the contaminants, operating conditions, and compliance standards.

Maintenance and Replacement Best Practices

To maximize filter performance and lifespan, follow these practices:

1. Monitor Differential Pressure: Replace cartridges when the pressure drop reaches the manufacturer’s recommended limit (usually 2–3 bar).
2. Regular Inspection: Check for signs of damage, fouling, or microbial growth.
3. Pre-Filtration Stages: Use prefilters to reduce the load on fine pleated cartridges.
4. Proper Installation: Ensure correct seating in the housing to avoid bypass.
5. Record Keeping: Track replacement intervals to predict service life and plan maintenance.

Common Mistakes to Avoid

1. Over-Specifying Micron Rating – Choosing ultra-fine cartridges unnecessarily increases costs and pressure drop.
2. Ignoring Chemical Compatibility – Using the wrong media can lead to filter degradation and contamination.
3. Mismatched End Caps – Leads to leakage or poor sealing.
4. Focusing Only on Price – Cheap cartridges with low dirt-holding capacity can result in higher long-term costs.
5. Skipping Certifications – Non-compliant filters in regulated industries can cause legal issues.

Case Example: Choosing Cartridges for a Food Processing Plant

A beverage manufacturer needs to filter water for the production of soft drinks. Their key requirements:

• Remove bacteria and fine particles
• Meet FDA and NSF standards.
• Handle flow rate of 3000 liters/hour
• Ensure long service life to minimize downtime.

Recommended Solution:

• Micron rating: 0.45 µm PES pleated cartridge
• Material: Food-grade polyethersulfone (PES)
• End-cap: 222 O-ring for secure fit
• Certification: FDA-approved, NSF-certified
• Result: Clear, safe product water, reduced replacement frequency, and regulatory compliance

Conclusion

Selecting the optimal pleated filter cartridge for industrial filtration systems necessitates a systematic approach. By following the step-by-step guide outlined above, engineers and procurement teams can ensure they select the most suitable filter for their process.

The process involves:

1. Defining the filtration objective
2. Identifying contaminants
3. Determining micron rating
4. Selecting filter media
5. Ensuring end-cap compatibility
6. Considering flow and pressure
7. Checking chemical and temperature resistance
8. Meeting regulatory standards
9. Calculating life cycle costs
10. Verifying housing compatibility

By following these steps, companies can achieve optimal filtration performance, ensure regulatory compliance, and achieve long-term cost savings. A well-chosen pleated filter cartridge is not just a consumable—it is an investment in system reliability, product quality, and operational efficiency.
